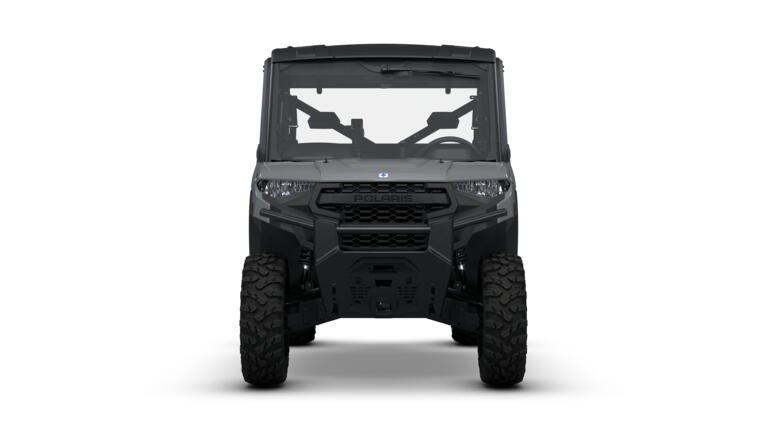

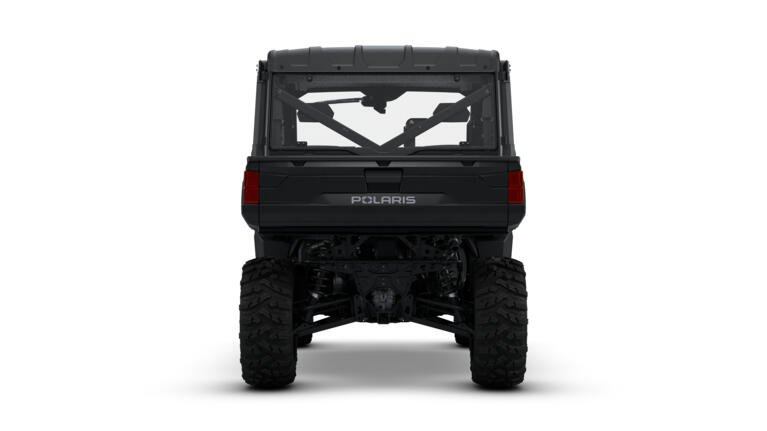

2026 Polaris RANGER CREW XP 1000CAB

Side by Side (SxS)

The 2027 Polaris RANGER XP 1000 CAB

Power Through Tasks and Trails .
Starting at $27,499 MSRP
Request Info
View Inventory

Specs & Features

ENGINE & DRIVETRAIN
Cooling
Liquid
Cylinders Displacement
999 cc
Drive System Type
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Driveline Features
----
Engine Type
4-stroke twin cylinder DOHC
Fuel System
Electronic fuel injection
Horsepower
82
Transmission/Final Drive
Gen 2; Automatic PVT H/L/N/R/P; shaft
DIMENSIONS
Bed Box Dimensions
36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
Box Capacity
1,000 lbs. (454 kg); CA Models: 600 lbs. (272 kg)
Curb Weight
2536 lbs. (1150 kg)
Estimated Dry Weight
2,403 lbs. (1090 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14" (36 cm)
Towing Capacity
2,500 lbs. (1134 kg)
Hitch Type
Standard 2" (5 cm) receiver
Overall Vehicle Size
152 x 65 x 79.5" (386 x 165 x 201 cm)
Payload Capacity
1,125 lbs. (510 kg)
Person Capacity
6
Turning Radius
17.5
Wheelbase
113" (287 cm)
SUSPENSION
Front Suspension
Dual A-arm, 10" (25.4 cm) travel
Rear Suspension
Dual A-arm, 10" (25.4 cm) travel
TIRES / WHEELS
Front Tires
29 x 9-14; Pro Armor X Terrain
Rear Tires
29 x 11-14; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
14" aluminum
BRAKES
Front/Rear Brakes
4-wheel hydraulic disc with dual-bore front and rear calipers
Parking Brake
Park in-transmission
TECHNOLOGY
Audio System
Not equipped, accessory options available
Connected Vehicle Services
Not equipped, accessory options available
Touch Screen Display
Not equipped, accessory options available
Rear Camera
----
Security
Polaris P.A.S.S. anti-theft system
COMFORT & CONVENIENCE
Driver Instrumentation
Dual-sweep analog dials with 4" LCD rider information center, passcode protection, programmable service intervals, programmable speed limiting, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator/codes, seat belt reminder
Seat Type
6-person bolstered bench seats with 3-point harness
Steering
Tilt adjustment
Electronic Power Steering
High-output EPS
Cab Components
Factory-installed cab system with powered front doors, crank rear doors, roof, glass windshield, glass rear panel, windshield wiper/washer, and sound insulation materials
Heat and/or Air Conditioning
Factory-installed heat, AC, defrost
Speed Limiting
Speed Limiting controlled in gauge
LIGHTING & ELECTRICAL
Lighting
Halogen headlamps (55W low beam, 60W high beam), dual LED taillamps
Electrical System
140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port
EXTERIOR FEATURES
Winch
Not equipped, accessory options available
Vehicle Protection
Large steel bumper, full-coverage skid plate, A-arm guards
Door Type
Powered window front doors, crank window rear doors
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
ADDITIONAL SPECIFICATIONS
Warranty
1-year limited warranty*
COMFORT
-Protection from the Elements: The factory-installed cab system—with a fixed windshield and powered front windows—offers more protection from the elements, so you can ride more comfortably in rain, dust or snow.

- Control Your Climate: Factory-installed heating and air conditioning lets you control the climate for all-season comfort. For quick relief on hot days, a variable AC compressor automatically varies its pumping capacity to deliver faster cooling and lower temperatures, even when at idle and low engine RPMs

- In-Cab Convenience: Take advantage of easy-to-access in-cab and under-seat storage for your gear. Place essentials in the dual-integrated glove boxes and keep beverages secure with up to 8 cup holders. Plus, charge your phone with the USB charging port.
CAPABILITY
- Performance With Precision: Stay smooth and controlled on the job or trail, thanks to 3-position throttle control with different drive modes. Choose ‘Performance’ for more response, ‘Standard’ for everyday driving, or ‘Work’ for improved low-speed control.

- Equipped To Adapt: Adapt to the terrain with three driveline modes: AWD, 2WD, and VersaTrac Turf Mode. For work around the house, use VersaTrac Turf Mode to unlock the rear differential for easier and tighter turns that won’t tear up your lawn.

- Heavier Loads, Fewer Trips: Class-leading 1,000-lb. box capacity and 2,500-lb. towing capacity to get more done in fewer trips.
DURABILITY
- Enhanced Protection: Boldly navigate obstacles with a rigid one-piece chassis, a redesigned front end featuring a larger front bumper, and a full-body skid plate.

- Effortless Shifting: Command the driver’s seat with confidence, thanks to the Gen 2 transmission. It reduces shift effort by up to 50% to easily shift between drive, park, and reverse--delivering a consistent, predictable feel.

- Sure-Footed Traction: Navigate the toughest terrain confidently with 29” 8 ply Pro Armor tires providing enhanced puncture resistance and a more peaceful cab experience. The 14” aluminum wheels add premium styling to elevate rough rides.

- Increased Uptime: Class-leading service intervals (200 hours or 2,000 miles) keep you up and running longer to enhance productivity.
