Overview

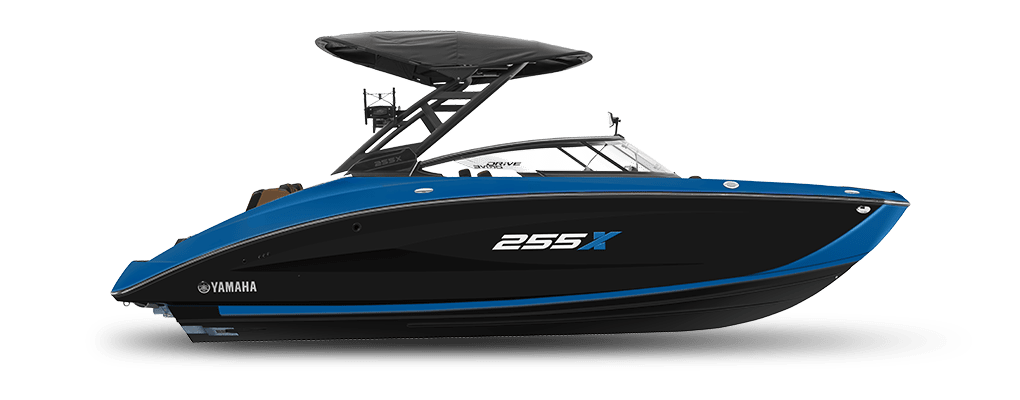

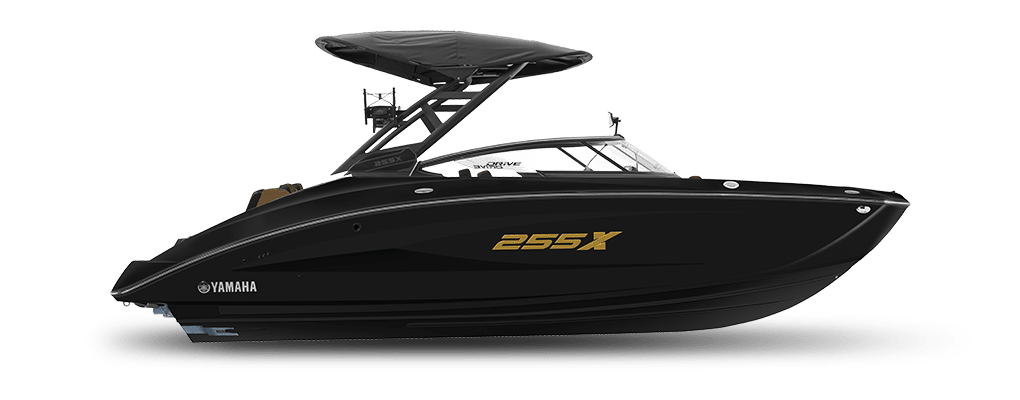

2026 Yamaha 255XD

Boat

Affordable Luxury Features at 19-Feet

High-tech features, sleek design, and top-notch performance create the ultimate affordable 19-foot boat package.
Starting at $126,999 MSRP
Request Info
View Inventory

Specs & Features

Specification
Length
24' 6"
Weight
4,656
Beam
8' 6"
Draft
19"
Dead Rise
20°
In-Water Height (Bridge Clearance)
8' 1"
Fuel Tank Capacity (gal)
75
Seating Capacity/Weight Capacity
12
Weight Capacity (lbs)
2350
Storage Capacity (gal)
613
Height on Trailer
11'
Height on Trailer with Tower Folded
9'11"
Length on Trailer
26'3"
Length on Trailer with Tongue Folded
24'8"
Dry Weight on Trailer (lbs)
5930
Yamaha Marine Engine
Twin Supercharged 4-cylinder, 4-stroke, Super Vortex High Output Yamaha Marine Engines
Cockpit and Bow
Snap-in Teak-style Marine-Grade Mat
Ski Locker
Removable Dinette Table with Pedestal
Mount at Stern
Bow Filler Inserts for Multiple Seating Configurations
Hinged Seat Cushions
Tilt Steering
Upgraded Steering Wheel
Stern
Integrated Swim Platform
Upholstered Cushioned Seats
Upholstered Cushioned Backrests
Articulating
12-volt Outlet
Stainless Steel Telescopic Reboarding Ladder
Dinette Table Mount
Custom Cut Marine-Grade Mat
Stern (Wet) Storage
Technical
DRiVE X
Helm Connext Screen (in)
12.3
MFD w/ Maps
Yamaha E-Series Features
Drive-By-Wire Technology
Helm Switch Panels
Blue LED Lit
Wireless Charging Points
1
Engines And DriveLine
Displacement (per engine)
1812cc
Fuel Capacity
75 GAL
Recommended Fuel
Premium Unleaded
160 MM High-Pressure Pump
Pump Clean-out Ports
Oil Capacity per Engine (L)
3.7
Exterior
Bow Rails
Stainless Steel Pop-Up Cleats
7
Tow Hook
BiminiTM Top
Extended
Premium Windshield Frame
Aluminum Folding Wakeboard Tower with Tow Hook
Wakeboard Racks
Trailer
Painted Trailer with Swing-away Tongue
Galvanized Trailer with Swing-away Tongue
Optional (Tandem Axle)
Spare Tire and Mount
Height on Trailer
11'
Height on Trailer with Tower Folded
9'11"
Length on Trailer
26'3"
Length on Trailer with Tongue Folded
24'8"
Dry Weight on Trailer (lbs)
5930
E-Series® Throttle Control
Equipped with advanced Electronic Throttle Control, the system includes push button start/stop, RPM engine sync, and single throttle lever pairing.
Integrated WakeBooster®
With the push of a button on the Connext® Touchscreen, the integrated WakeBoosters® can be deployed on either side of the boat, creating adrenaline-pumping wakes for wakesurfing.
12.3'' Connext® Touchscreen
The 255XD features a cutting-edge Connext touchscreen, the largest that Yamaha offers, seamlessly integrated into its minimalistic, floating helm design.
Cool Comfort Touch Vinyl®
Engineered with a special heat-reflective coating, this innovative vinyl keeps surfaces cool to the touch while being resistant to mildew and fading, ensuring long-lasting comfort and durability.
Twin Supercharged 1.8L Marine Engines
Supercharged and intercooled, Yamaha's SVHO engines deliver a combined 500 horsepower, channeled through Yamaha's renowned Jet Propulsion system for unmatched performance.
Factory-Installed Ballast System
The 255XD comes equipped with a 1,600 lbs triple ballast system, an oversized billet aluminum rear view mirror, and a premium sound system specifically designed to enhance your towing experience.
