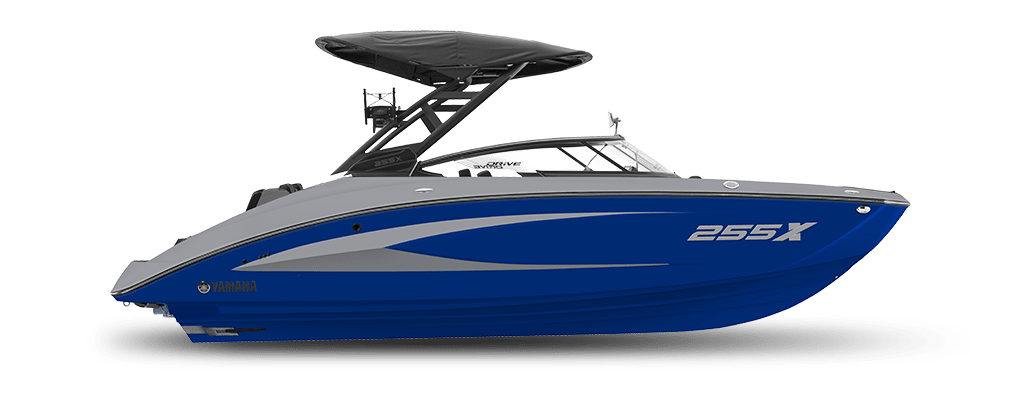

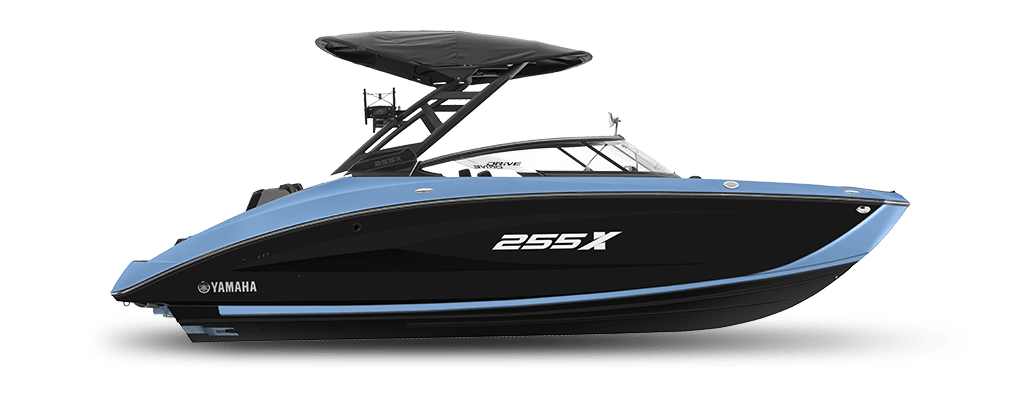

2025 Yamaha Boats 255XD

Black
Powder Blue
Mist Gray
MSRP: $120,999
Request Info
View Inventory
Back to Showroom

Specs and Features

Specification
Length
24' 6"
Weight
4,656
Beam
8' 6"
Draft
19"
Dead Rise
20°
In-Water Height (Bridge Clearance)
8' 1"
Fuel Tank Capacity (gal)
75
Seating Capacity/Weight Capacity
12
Storage Capacity (gal)
613
Height on Trailer
11'
Height on Trailer with Tower Folded
9'11"
Length on Trailer
26'3"
Length on Trailer with Tongue Folded
24'8"
Dry Weight on Trailer (lbs)
5930
Yamaha Marine Engine
Twin Supercharged 4-cylinder, 4-stroke, Super Vortex High Output Yamaha Marine Engines
COCKPIT AND BOW
Snap-In Custom Cut Marine-Grade Mat
Ski Locker
Removable Dinette Table with Pedestal
Mount at Stern
Bow Filler Inserts for Multiple Seating Configurations
Hinged Seat Cushions
Tilt Steering
Upgraded Steering Wheel
Upgraded Upholstery
Chil-Cool Vinyl Upholstery
Adjustable Captain's chair with Flip-Up Bolster
Passenger-side Captain's Chair
Portside Entertainment Area
Lockable Passenger Side Glove Box
Walk-through Bow Door
Integrated Removable Cooler
Enclosed Head Compartment
w/ Wardrobe Storage Features, Upholstered Interior & Light
Galley with Stow-in-Place Table and Storage
Docking Lights
Courtesy Deck Lighting
Courtesy Tower Lighting
Dedicated Anchor and Rope Locker
Bow Reboarding Ladder
Upgraded Aluminum Handles & Accents
Cockpit Drainage System (CDS)
LED Accent Lighting
Stern
Integrated Swim Platform
Upholstered Cushioned Seats
Upholstered Cushioned Backrests
Articulating
12-volt Outlet
Stainless Steel Telescopic Reboarding Ladder
Dinette Table Mount
Custom Cut Marine-Grade Mat
Stern (Wet) Storage
Technical
DRiVE X
Connext Screen (in)
12.3
Display w/ Maps
Yamaha E-Series Features
Drive-By-Wire Technology
Helm Switch Panels
Blue LED Lit
Wireless Charging Points
1
Marine Speakers
(7) Premium Hertz Speakers
Tower Speakers
(2) Premium Hertz Speakers
Stern Stereo Remote
Stern Speakers
3 position "No Wake Mode™" Control
Cruise Assist
Battery Setup
Dual
Quiet Cruise Technology
Integrated Ballast System
Toe-in Jet Nozzle Position
Integrated Electric WakeBooster
Underwater Light
Engines and Driveline
Displacement (per engine)
1812cc
Fuel Capacity
75 GAL
Recommended Fuel
Premium Unleaded
160 MM High-Pressure Pump
Pump Clean-out Ports
Oil Capacity per Engine (L)
3.7
Exterior
Stainless Steel Bow Rails
Stainless Steel Pop-Up Cleats
7
Tow Hook
BiminiTM Top
Extended
Premium Windshield Frame
Aluminum Folding Wakeboard Tower with Tow Hook
Wakeboard Racks
Windshield Mirror
Billet Aluminum
Yamaha Wake-enhancing Hull
Trailer
Painted Trailer with Swing-away Tongue
Galvanized Trailer with Swing-away Tongue
Optional (Tandem Axle)
Spare Tire and Mount
Height on Trailer
11'
Height on Trailer with Tower Folded
9'11"
Length on Trailer
26'3"
Length on Trailer with Tongue Folded
24'8"
Dry Weight on Trailer (lbs)
5930

The Ultimate Jet-Powered Wakesurfer

The 255XD, with its combined 500 horsepower, features cutting-edge DRiVE® X technology, exceptional wakesurf performance, and a stylish design.




E-Series® Throttle Control
Equipped with advanced Electronic Throttle Control, the system includes push button start/stop, RPM engine sync, and single throttle lever pairing.
Integrated WakeBooster®
With the push of a button on the Connext® Touchscreen, the integrated WakeBoosters® can be deployed on either side of the boat, creating adrenaline-pumping wakes for wakesurfing.
12.3'' Connext® Touchscreen
The 255XD features a cutting-edge Connext touchscreen, the largest that Yamaha offers, seamlessly integrated into its minimalistic, floating helm design.
Chil-Cool Touch Vinyl®
Engineered with a special heat-reflective coating, this innovative vinyl keeps surfaces cool to the touch while being resistant to mildew and fading, ensuring long-lasting comfort and durability.
Twin Supercharged 1.8L Marine Engines
Supercharged and intercooled, Yamaha's SVHO engines deliver a combined 500 horsepower, channeled through Yamaha's renowned Jet Propulsion system for unmatched performance.
Factory-Installed Ballast System
The 255XD comes equipped with a 1,600 lbs triple ballast system, an oversized billet aluminum rear view mirror, and a premium sound system specifically designed to enhance your towing experience.
